Hot Sales fully Automatic Multi-disc Climbing Type Packaging Machine For Screws Nuts Toys

Product Categories

Zhongshan Xingke Automation Equipment Co., Ltd.

Contact Now

Hot Sales fully Automatic Multi-disc Climbing Type Packaging Machine For Screws Nuts Toys

Name: Hot Sales fully Automatic Multidisc Climbing Type Packaging Machine For Screws Nuts Toys
Brand: Xingke
Price: 17 USD

China Hot Sales fully Automatic Multi-disc Climbing Type Packaging Machine For Screws Nuts Toys factory

Type : Multi-Function Packaging Machine

Production Capacity : 5-15 packages/minute

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 2060

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Film, Pouch

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : Xingke

Dimension(L*W*H) : 7940*4450*1900mm

Warranty : 1 Year

Key Selling Points : multifunctional

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Gear, Bearing, Other

Product name : Automatic Vertical Packing Machine

After-sales Service Provided : Video Call Technical Support

Film material : OPP CPP PET PE

Counting mode : optical fiber counting/blocking and placing

Bag making size : width 100-400, length under 450

Sealing shape : upper and lower cylinder membrane sealing

Voltage and power : 380V/50Hz

Keyword : Packaging Machinery Equipment

Pocket mouth shape : pattern knife tooth type

Feature : High Effective

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 50 Set/Sets per Month

Price : $17,500.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B8610T
Counting mode	optical fiber counting/blocking and placing
Bag making size	width 100-400, length under 450
Packaging speed	5-15 packages/minute
Sealing shape	upper and lower cylinder membrane sealing
Voltage and power	380V/50Hz P ≈ 4.0KW
Weight	about 2060KG
Pocket mouth shape	pattern knife tooth type
Overall dimension	7940mm long/4450mm wide/1900mm high

Hot Sales fully Automatic Multi-disc Climbing Type Packaging Machine For Screws Nuts Toys

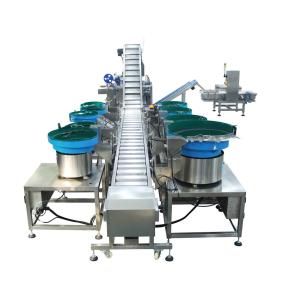

XK-B8610T (ten drum film packaging machine) 1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The bag is made of cylindrical membrane, without the need of a molding machine. 3. Fault self diagnosis and alarm display. 4. Man machine interface operation, simple and convenient parameter setting. 5. Use heating wire to control temperature and seal, and use pneumatic suction bag to pull the bag. 6. The transmission system is simple and clear, reliable, and easy to maintain. 7. The bag width can be changed at any time, just replace the cylinder membrane. 8. Object sensing to prevent empty bags. 9. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 10. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.

2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. The chain bucket climbing type is used to drive the material box to rotate, and the materials are put into the material box manually. The climbing method is used to reduce the height of the trailer. More than 10 vibrating disk stations can be added behind the trailer, which can continue to mix and automatically package materials of more specifications, The free space can also be used for manual feeding. This product is applicable to the products with large quantity and large material, which require PE material as the bag making material, and the upper and lower cylinder membrane packaging. For example, rubber particles, injection molded parts, springs, capacitors, plastic standard parts, water pipes, power cables, etc. The bag making size of this product is large, and the opening is large, so there is no need for the shaper to cut material, and it can be used for filling and packaging of products with large size and large quantity.

2. It is applicable to "PE cylinder membrane" as sealing material.
