Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging

Product Categories
Zhongshan Xingke Automation Equipment Co., Ltd.
Contact Now

Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 bags/min

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Weight (KG) : 3600

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting

Application : Commodity, Machinery & Hardware

Packaging Type : Bags, Film, Foil, Pouch

Packaging Material : Plastic, Paper

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50Hz

Place of Origin : Guangdong, China

Brand Name : Xingke

Dimension(L*W*H) : 5600mm*2100mm*1850mm

Warranty : 1 Year

Key Selling Points : multifunctional

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Gear, Bearing, Other

Product name : Multi-Function Packaging Machine

After-sales Service Provided : Video Technical Support

Film material : OPP CPP PET PE

Advantage : Easy Operation High Efficiency

Counting method : optical fiber counting/blocking and putting

Bag size : width 40-140, length less than 200 (usually 140)

Packing speed : 1-60 bags/min

Sealing shape : stripe, back seal/three side seal (usually back seal)

Air supply : 0.4-0.8Mpa

Bag mouth shape : figure cutter tooth shape

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 50 Set/Sets per Month

Price : $19,800.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

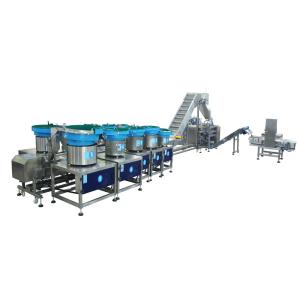

Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Equipment model
XK-B872Z
Counting method
optical fiber counting/blocking and putting
Bag size
width 40-140, length less than 200 (usually 140)
Packing speed
1-60 bags/min
Sealing shape
stripe, back sealing/three side sealing (conventional back sealing)
Voltage power
220V/50Hz P≈3KW
Air supply
0.4-0.8MPA
Bag mouth shape
figure cutter tooth shape
Dimensions
length 5600mm/ width 2100mm/ height 1850mm
Weight
about 3600KG
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 10 vibrator bowls work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging

MORE DETAILS PICTURE


Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging
Machine Supplier Weighing Packaging Machine For Screws and Nuts Hardware packaging

We have a variety of machine patent certificates and export certificates, welcome to contact！！
