Multi-function Hardware Nut and Bolts Rivet Parts Counting and Packing Machine with Vibrating Feeder

Name: Multifunction Hardware Nut and Bolts Rivet Parts Counting and Packing Machine with Vibrating Feeder
Brand: XingKe
Price: 23 USD

China Multi-function Hardware Nut and Bolts Rivet Parts Counting and Packing Machine with Vibrating Feeder factory

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 3600

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Sealing, counting, Automatic packaging

Application : Commodity, Medical, Machinery & Hardware

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50Hz

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 5600*2100*1850MM

Warranty : 1 years

Key Selling Points : Multifunctional

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Bag type : stripe, back seal/three side seal

Air supply : 0.4-0.8Mpa

Main Function : Weighing Forming Filling Sealing

Bag mouth shape : figure cutter tooth shape

width 40-140, length less than 200 : width 40-140, length less than 200

Packing material : CPP OPP

Feature : Easy Opperation

Advantage : Servo Motor Control

Keyword : Packaging Machinery Equipment

Packaging Details : Packed in wooden cases

Port : guanghzou

Supply Ability : 50 Set/Sets per Month

Price : $23,500.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B872Z
Counting method	optical fiber counting/blocking and putting
Bag size	width 40-140, length less than 200 (usually 140)
Packing speed	1-60 bags/min
Sealing shape	stripe, back sealing/three side sealing (conventional back sealing)
Voltage power	220V/50Hz P≈3KW
Air supply	0.4-0.8MPA
Bag mouth shape	figure cutter tooth shape
Dimensions	length 5600mm/ width 2100mm/ height 1850mm
Weight	about 3600KG

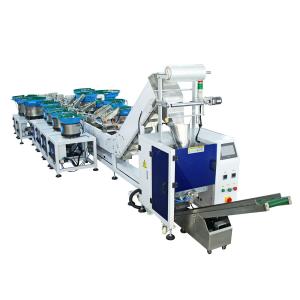

Multi-function Hardware Nut and Bolts Rivet Parts Counting and Packing Machine with Vibrating Feeder

XK-B872Z（12 Kinds Product Mixing Filling with Manual Placement Packaging Machine）

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 10 vibrator bowls work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
